T-FP3 150W 3-Antenna Anti-Drone Signal Blocker with Triangular Leaf Antenna Design (150m)

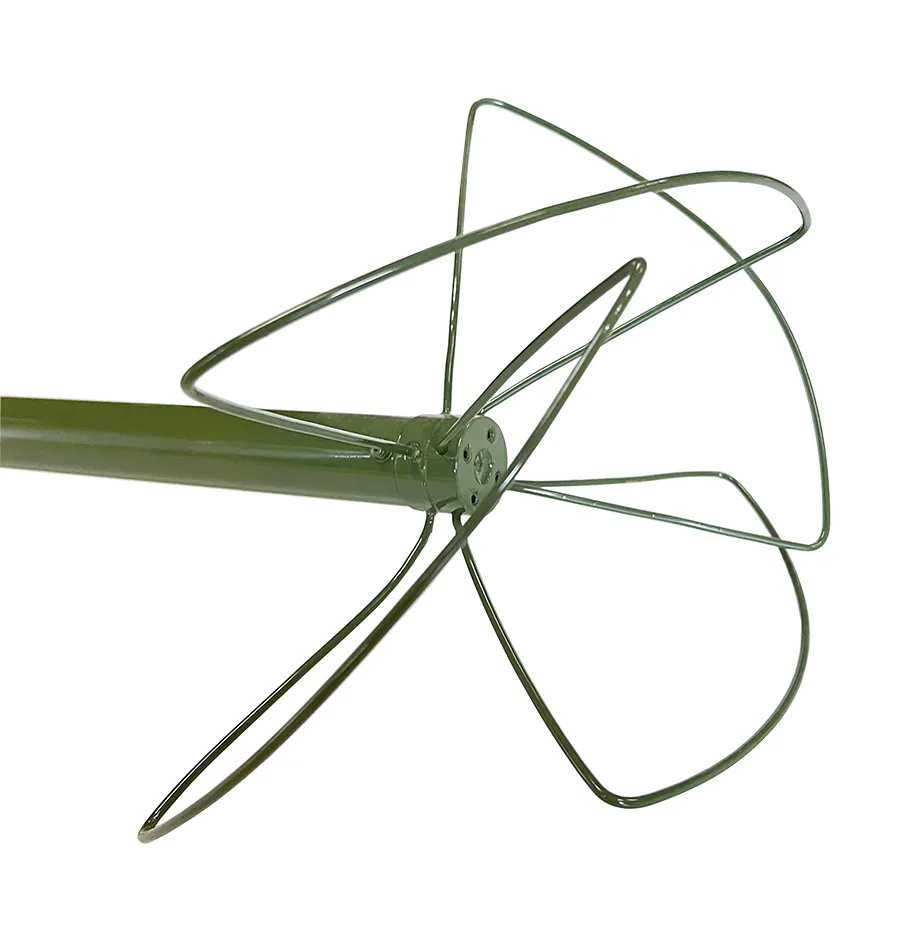

The first thing that stands out about the T-FP3 vehicle mounted FPV system signal blocker is its antenna structure. Instead of using a conventional straight antenna layout, this model adopts three triangular leaf antennas arranged for wider vertical-angle coverage.

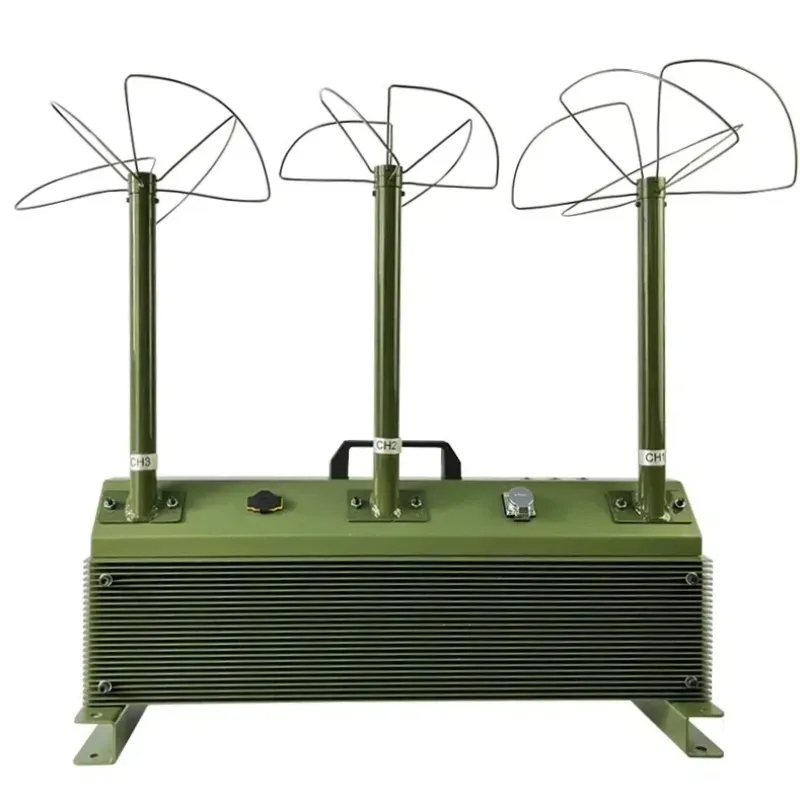

Three sets of triangular blade-shaped antennas utilize a three-channel configuration, with an output power of 50W per channel.

We offer services with customizable frequencies, please feel free to contact us if you have any requirements!

For FPV-related signals, this design helps create a broader coverage area with a maximum range of up to 150 meters under suitable conditions.

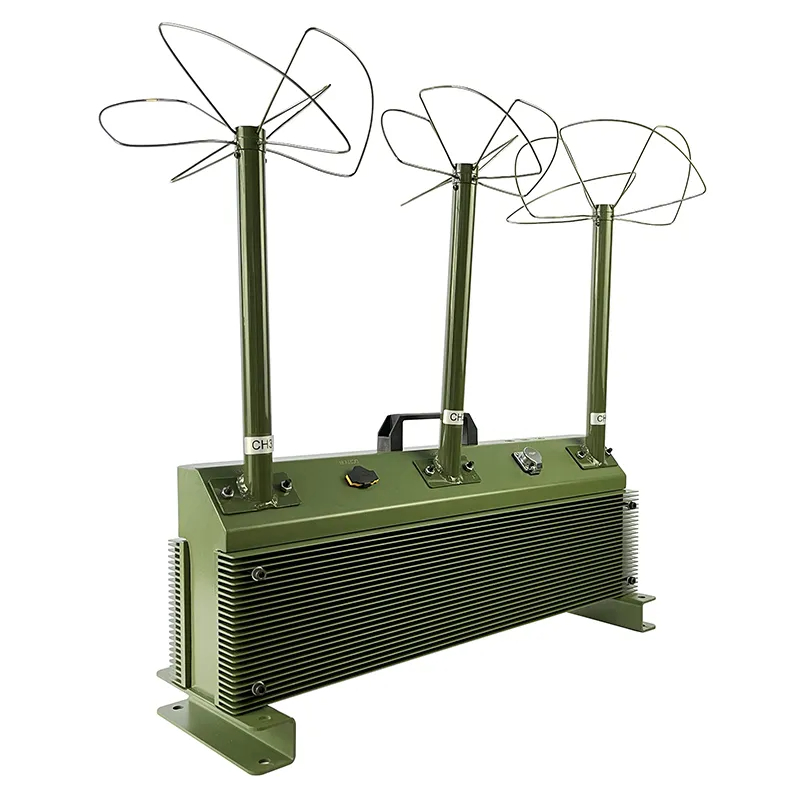

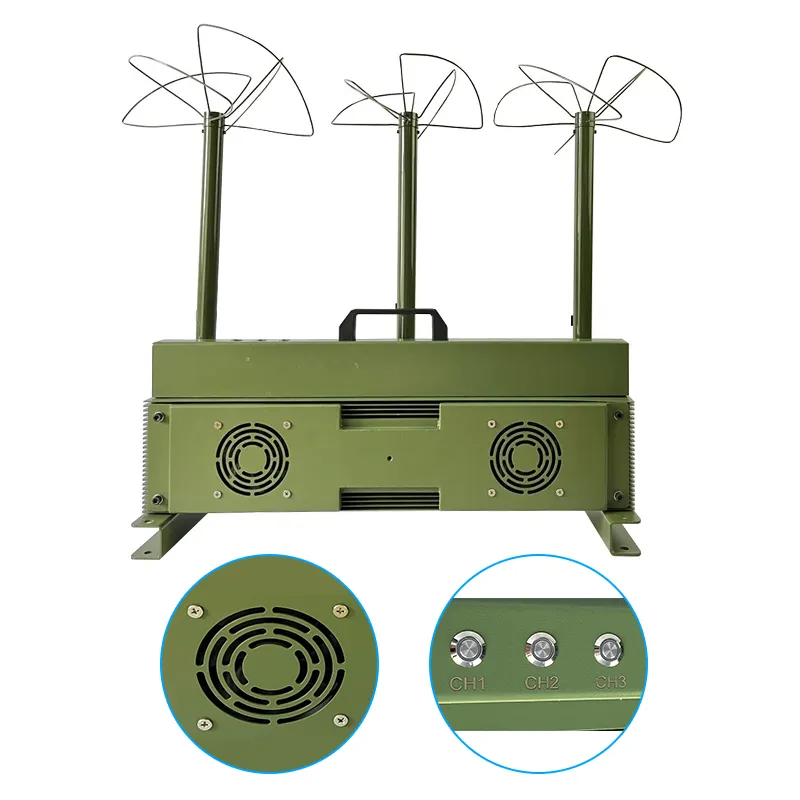

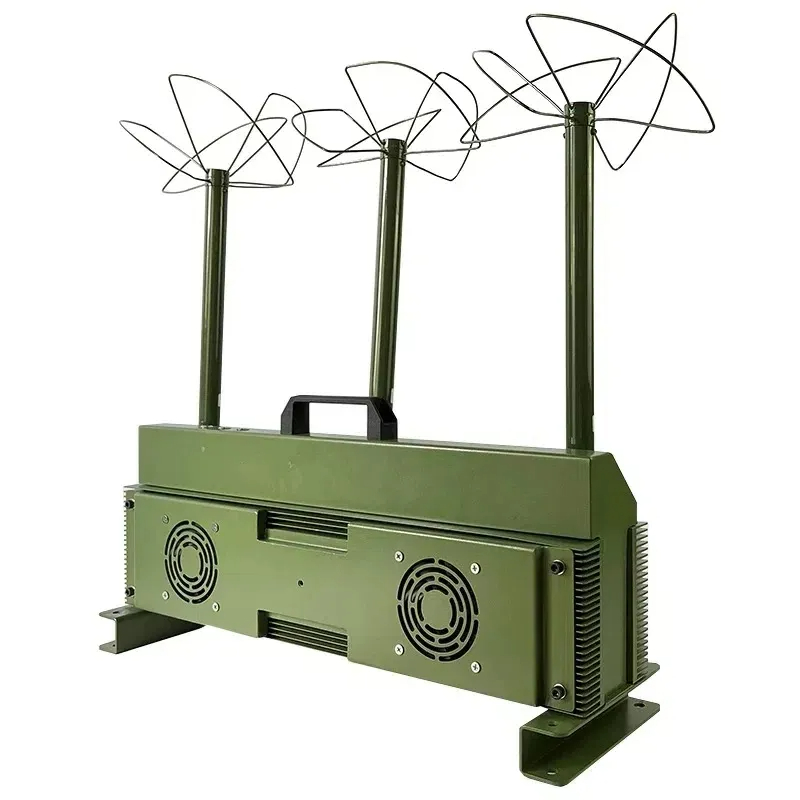

The internal structure combines an anti-oxidation aluminum alloy housing and integrated heat sink, helping release heat generated during high-power operation. And two high-speed silent fans work alongside the cooling body to maintain a stable temperature.

The drone jammer also includes several practical details often overlooked in high-power equipment.

A soft-start circuit reduces the initial current impact during power-up.

while high-performance ICs and surface-mounted components improve internal stability.

Automated SMT placement and reflow soldering are used during production to maintain consistent assembly quality.

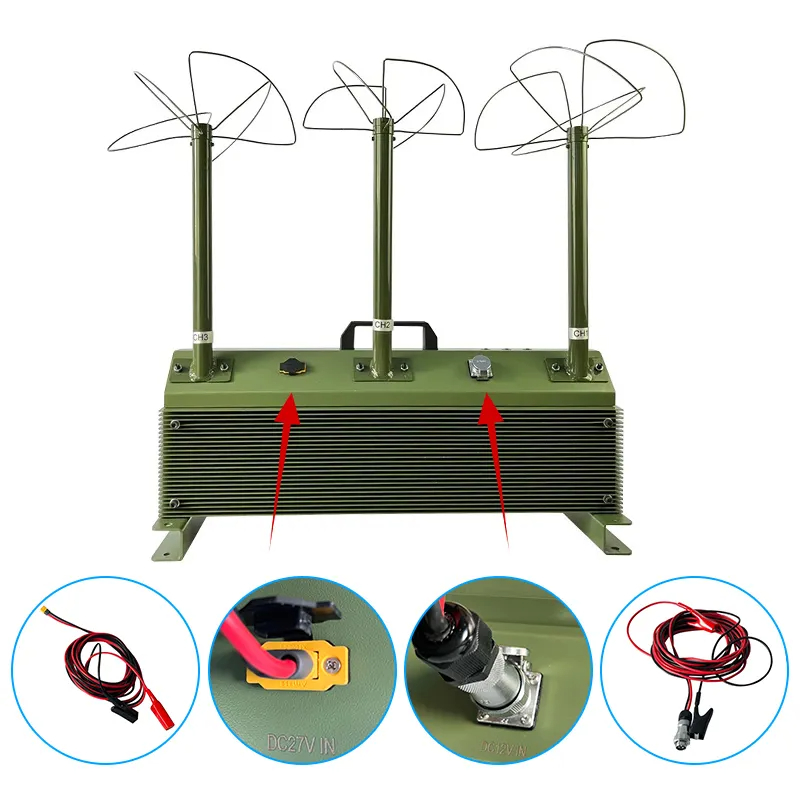

Supporting DC 12V and DC 27V input, the high power quadcopter UAV killer can be installed in different environments. The included remote controller allows convenient power control, and the portable enclosure makes transportation and vehicle deployment easier.

Technical Specifications for High-Power Drone Jammers:

• Net Weight (Including Antennas): 14.6 kg
• Main Unit Dimensions (Without Antennas): 60 × 9 × 25 cm
• Total Output Power: 150W
• Jamming Radius: 150 m
• Power Input: DC 12V input and DC 27V input
• Antenna Length: 600 mm
• Electric Field (SAR) Compliance: Compliant with ICNIRP standards for human safety
