B-DR4 - 4 bands backpack anti drone Interceptor

The "B-DR4" portable drone signal Interceptor is designed to counter unauthorized drone activities, such as illegal surveillance and aerial recording. It disrupts the communication link between a drone and its operator, cuts off control signals, and jams satellite navigation systems like GPS. Equipped with a built-in 30,000 mAh battery, the B-DR4 can operate independently for extended periods in outdoor environments, away from any power sources.

Built into a rugged, weather-sealed case, the jammer is easy to transport and built to withstand field conditions. With 170W of total output power and high-performance omnidirectional antennas, it provides effective coverage of up to 1000 meters (approximately 0.62 miles). Four internal cooling fans ensure stable, continuous operation when plugged into an outlet. The system also features automatic electronic protection to prevent damage in case of antenna failure or improper setup.

Key Features of the B-DR4 Mobile Drone Jammer:

• Multi-band Interference: Covers four critical frequency bands — 900 MHz (860–928 MHz, 40W), GPS L1/L2 (1560–1610 MHz, 50W), 2.4 GHz WiFi/RC (2400–2500 MHz, 50W), and 5.8 GHz WiFi/FPV (5725–5875 MHz, 30W). This range includes both common and less-used frequencies to maximize protection.

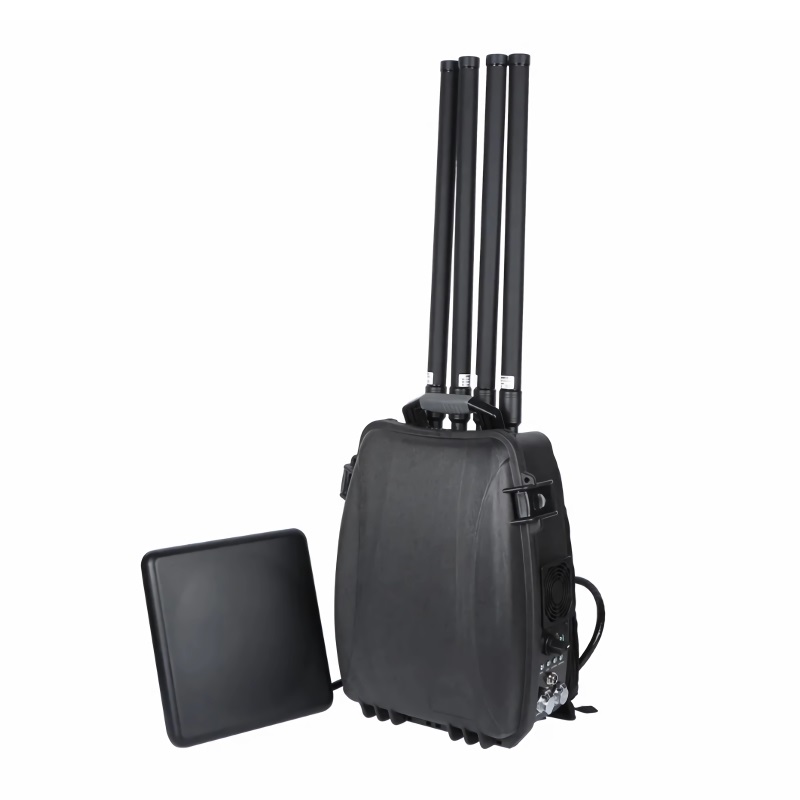

• Two Operational Modes: Use omnidirectional antennas for 360° dome coverage or switch to a directional antenna for focused drone suppression in a specific area.
• Extended Battery Life: The internal 30000 mAh battery supports up to 1 hour of unplugged operation, ideal for mobile and remote missions.
• Long-Range Protection: Capable of jamming drones up to 1 kilometer (0.62 miles) away, securing sensitive areas from unwanted UAV intrusions.
• Advanced Electronics Protection: Built-in feedback circuitry prevents amplifier overload and ensures long-term reliability even under challenging conditions.

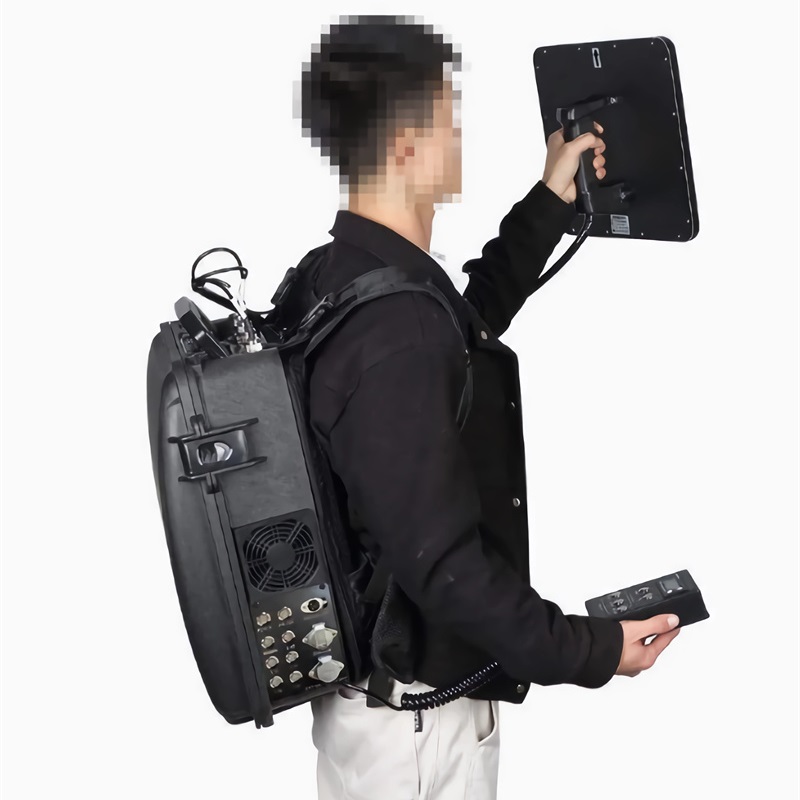

• Easy Transport: Comes with a heavy-duty backpack for convenient, one-person deployment in the field.
• Active Cooling System: Dual high-speed fans maintain optimal internal temperatures for continuous, heavy-duty use without overheating.
• Adjustable Output Power: Each jamming channel features individual power adjustment, allowing fine-tuning based on specific mission needs.
• Navigation Signal Blocking: Effectively disrupts drones using satellite navigation systems like GPS (used across the U.S.) and GLONASS (used by certain imported UAVs).

Technical Specifications:

Jamming Channels: 4 independent frequency modules

Battery Runtime: Up to 1 hour on a full charge

Power Supply: 110–120V AC input (standard U.S. outlet), Charging voltage: 24V DC, 5A

Battery Capacity: 24V, 30000 mAh high-capacity lithium battery

Housing: Ruggedized, waterproof, and shock-resistant case

Device Weight: 33 lbs (15 kg); 37.5 lbs (17 kg) including all accessories

Dimensions: 15.7 x 11.2 x 5.9 inches (400 x 285 x 150 mm)

Operating Temperature Range: -4°F to 140°F (-20°C to +60°C); designed to perform reliably in extreme outdoor environments

Important Usage Notes:

Always ensure that all antennas are securely connected before powering on the device. Failure to do so may result in equipment malfunction or damage.
Before deployment, check the battery charge level. For optimal performance, it is recommended to either fully charge the battery or operate the jammer while connected to a 110V–120V AC power source.
