High Power Triple-Band Drone Jammer with 915MHz, WiFi 2.4G and WiFi 5.8G

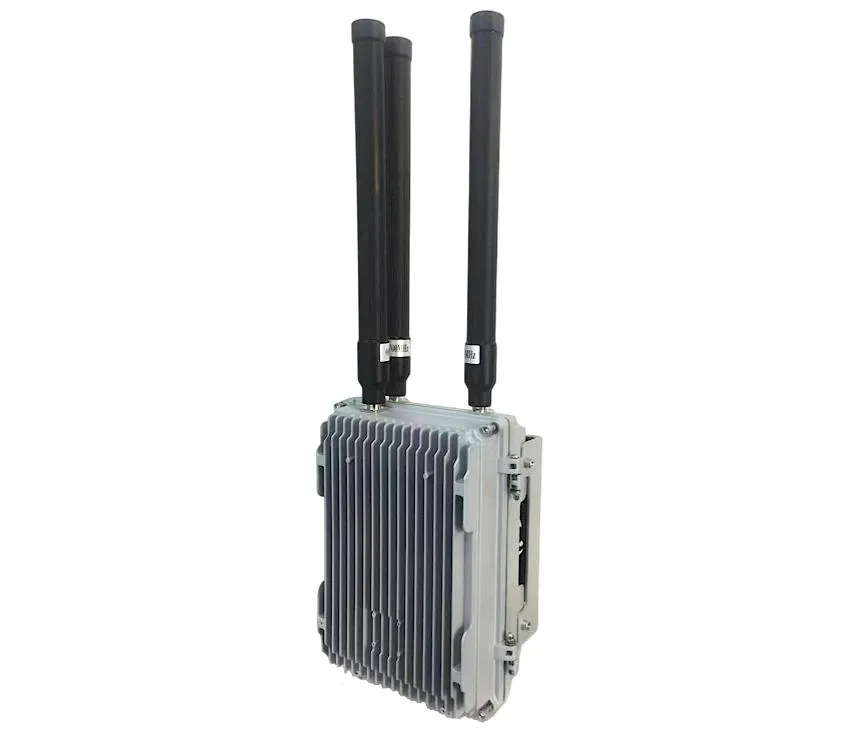

The J-DR3 drone jammer combines 150W total output power with a three-band frequency configuration, each frequency channel delivers up to 50W output power.

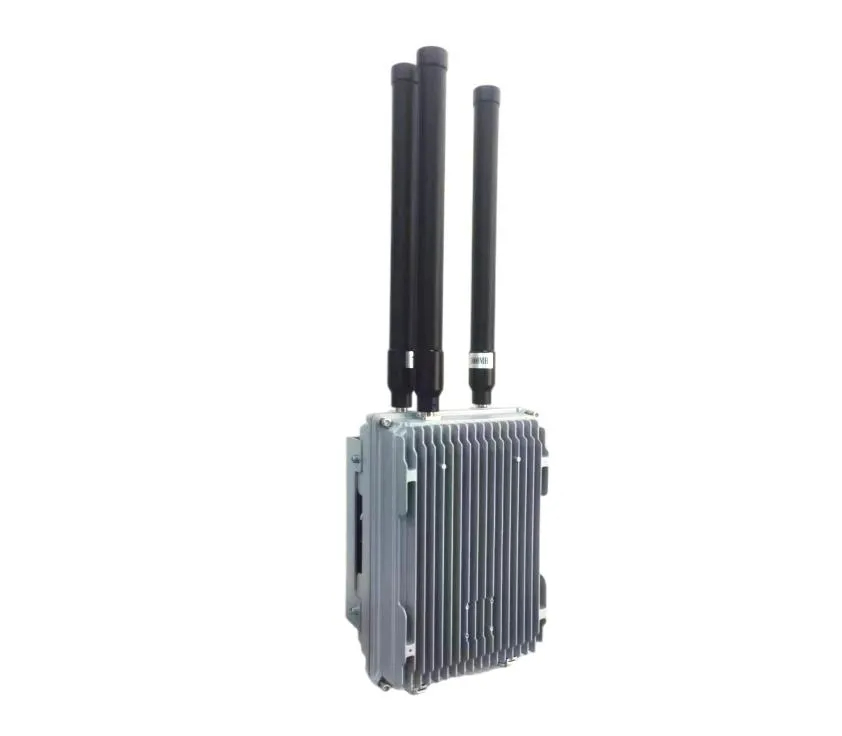

The UAV signal jammer supports three commonly used UAV frequency bands: 915MHz, 2.4GHz, and 5.8GHz. These frequency ranges are widely found in popular drone platforms, including DJI Mavic, Phantom, FPV, and Enterprise series, as well as Autel EVO series, Parrot ANAFI...

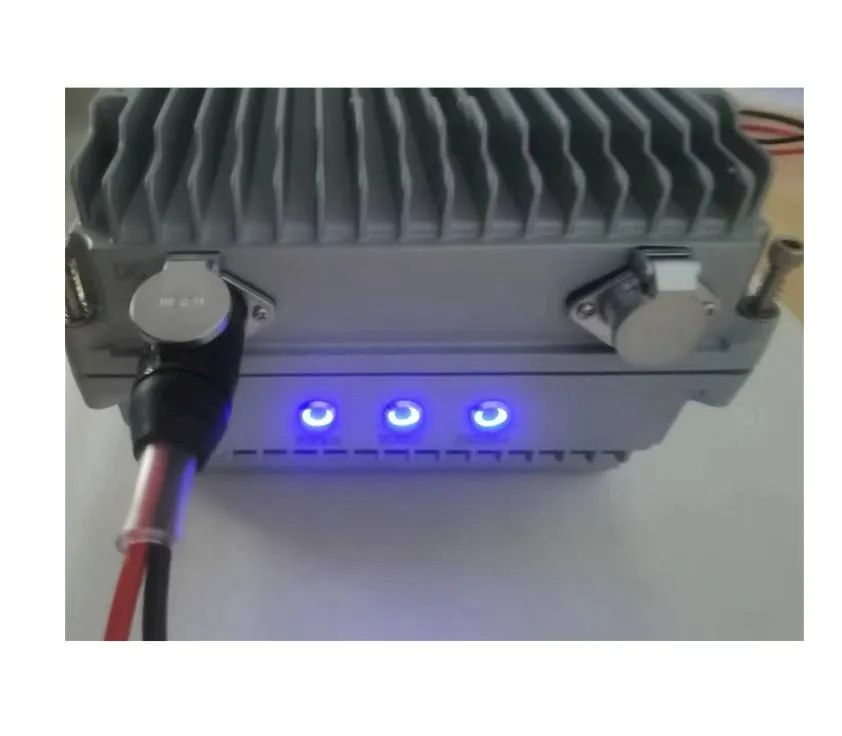

With an effective range of approximately 800–1500 meters, the signal blocking device provides wide-area coverage depending on the surrounding environment and signal conditions.

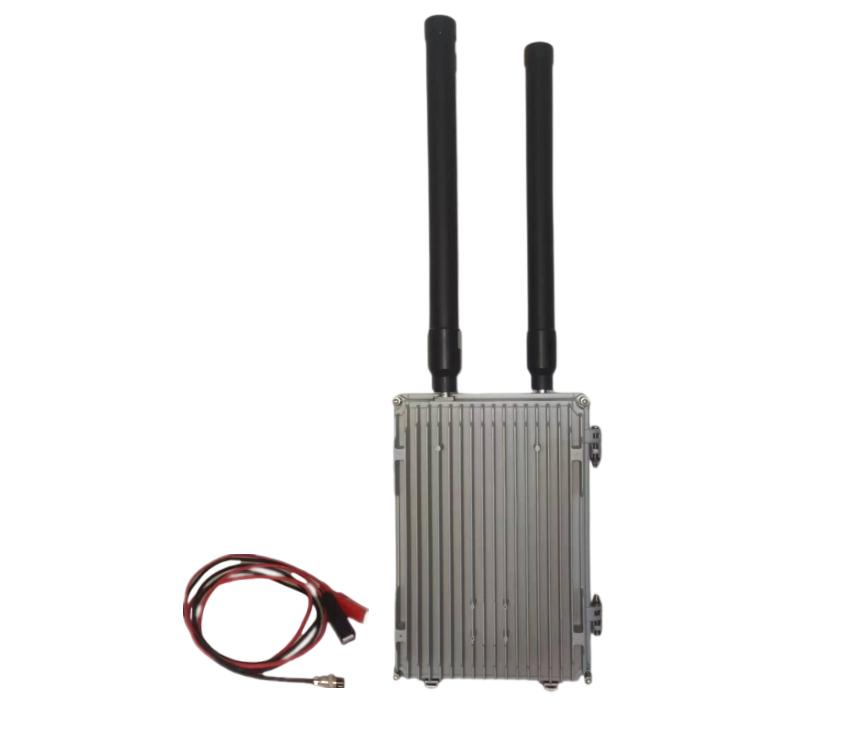

Equipped with high-gain magnetic antennas, the FPV system signal blocker supports flexible installation on vehicle roofs, making it suitable for mobile deployment environments.

The system supports both AC 220V and DC 28V power input, allowing convenient use in different operating conditions.

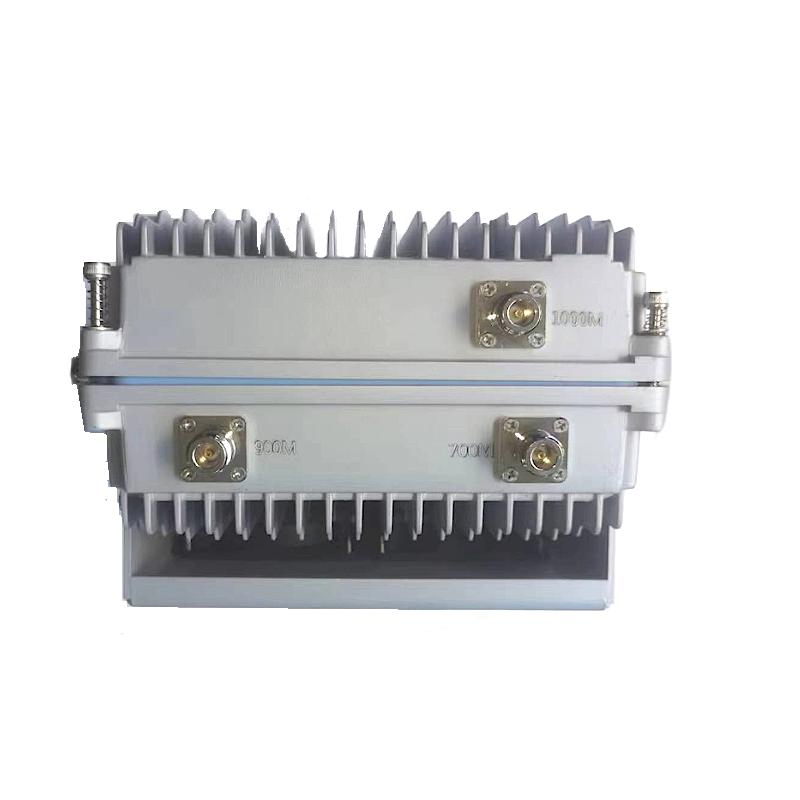

For long-duration operation, the quadcopter UAV killer features a fin-style heatsink cooling structure to improve heat dissipation and maintain stable performance during continuous use.

Specifications of High Power Anti-Drone Signal Blocker：

Frequency range: 915 MHz, 2.4 GHz, and 5.8 GHz (customizable upon request)

Total power: 150 W

Jamming range: 800–1,500 m

Voltage: 12–28 V

Dimensions: 34 × 23.5 × 17 cm (antenna not included)

Antenna: 40 cm

Weight: 11 kg
