J-DR2 Dual-Band anti-drone jammer for 900MHz & 5.8GHz signals (30W)

Why do some drone jamming equipments fail to fully disconnect a quadcopter?

The answer is simple: most of them only target one signal path. The J-DR2 takes a different approach by focusing on both signal jamming and FPV transmission simultaneously.

It focuses on two critical frequency ranges used in modern UAV frequency — 900 MHz (commonly used in LoRa-based control systems and long-range remote links) and 5.8 GHz (FPV video transmission and WiFi signals). By targeting both jamming and video channels at the same time, the J-DR2 creates a complete break in the quadcopter’s real-time connection.

Unlike compact devices that rely on short bursts of output, this dual-band wireless signal jammer is designed for continuous and stable RF interference. Its operating power can reach 30W, giving it enough strength to maintain consistent disruption across both bands without signal dropouts.

High power always brings heat, so the structure of this UAV jammer device is engineered around thermal control:

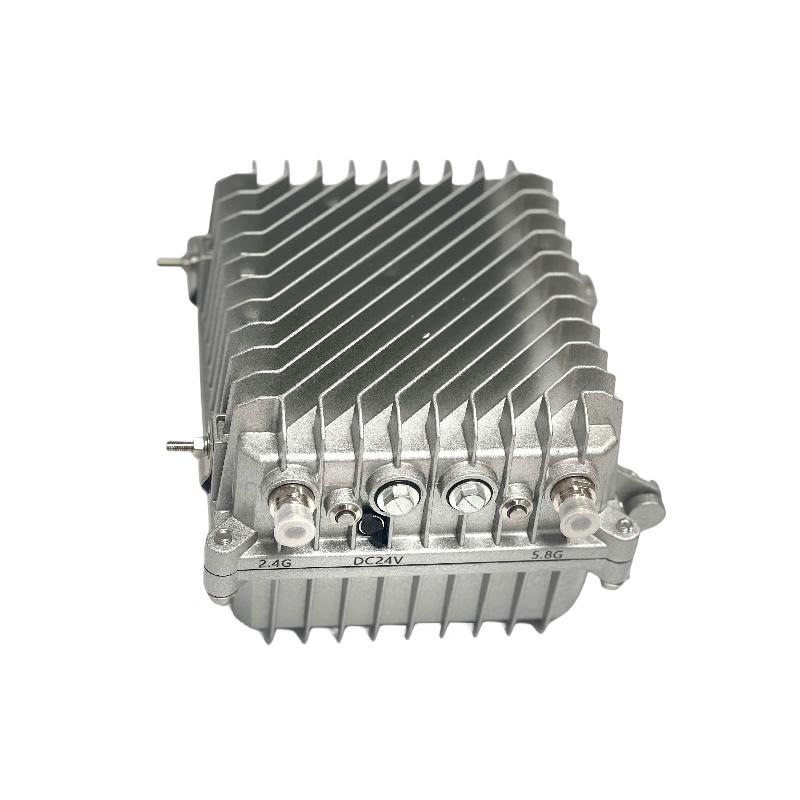

The body uses a full aluminum alloy enclosure combined with a large fin-style heat sink. The angled fin layout isn’t just for appearance — it’s designed to create a natural airflow path. As heat rises through the fins, cooler air is drawn in from below, forming a continuous “chimney effect” cooling cycle. Quite a smart engineering choice, if you think about it.

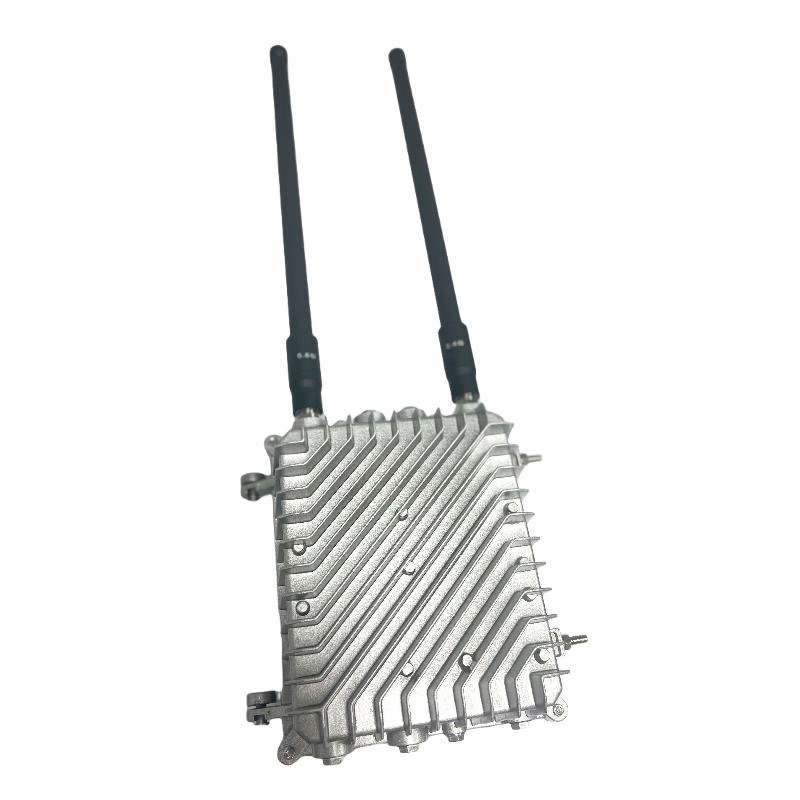

Instead of internal antennas, this FPV system signal blocker uses external N-type connectors, which means:

• Better RF efficiency with lower signal loss
• More stable transmission performance
• Easy antenna replacement or upgrade options

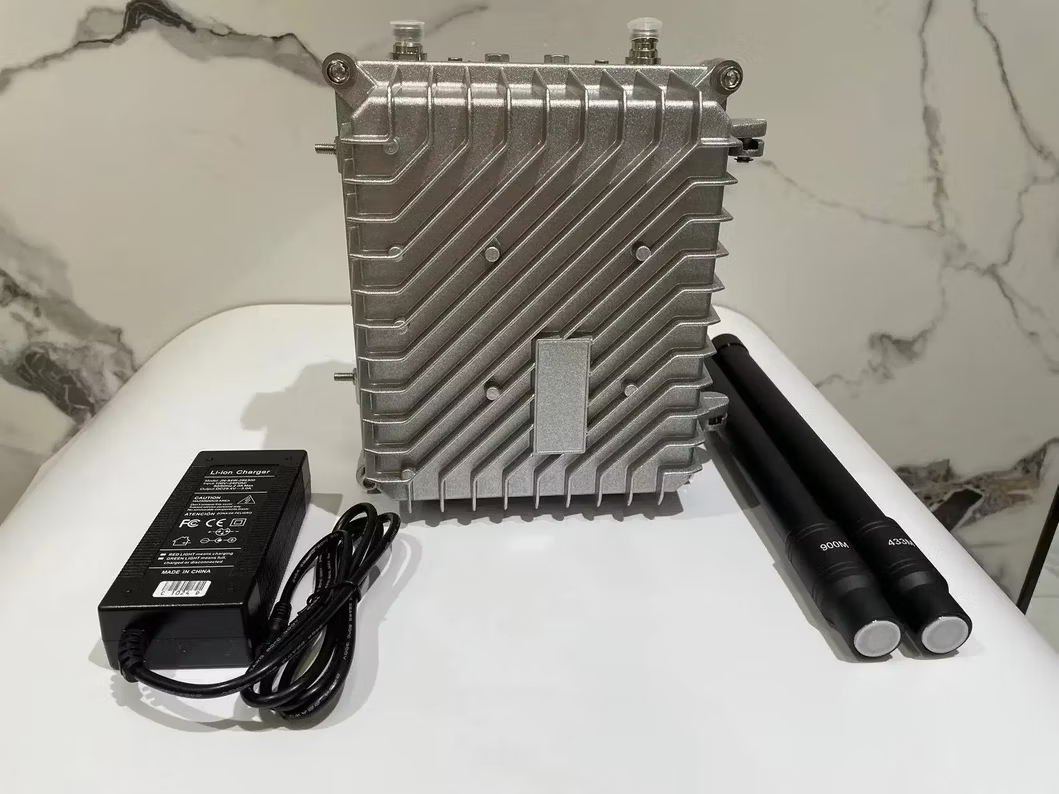

Despite its industrial structure, the unit remains portable. It includes a rechargeable high-capacity battery, supporting up to around 50 minutes of continuous operation. And with a DC 24V power supply, the device ensures stable voltage delivery, reduced interference, and consistent performance even during long-term operation.

If these options still don't meet your needs, and budget isn't a concern, the Dr-H6 high-power drone jammer might be a better choice, which offers broader coverage of mainstream drone communication and navigation signals, including 868/915 MHz, Wi-Fi 2.4G/5.2G/5.8G, and GPS L1/L2. Most importantly, it boasts a power output of up to 200W.

Anti-Drone blocker's Core Highlights

Dual-band coverage: 900 MHz + WiFi 5.8 GHz / WiFi 2.4G + WiFi 5.8G

Targets LoRa control links and FPV video transmission

30W class RF output

Aluminum alloy housing with passive cooling fins

Chimney-effect thermal design for stable operation

External N-type antenna system

Built-in battery (~50 minutes runtime)
