Dr-H6 high-power drone jammer with dense heat dissipation ridges

The Dr-H6 high-power Quadcopter jammer features a robust gold-plated aluminum alloy shell and precision-machined heat dissipation fins, ensuring high heat dissipation efficiency while balancing practicality and stability. It boasts a portable, integrated carrying case design and is equipped with independent channel control for precise signal jamming. The built-in pull-out rechargeable battery provides long-lasting power, and a clear LCD screen displays the remaining battery level in real time. It effectively jams mainstream drone frequencies, covering 868/915 MHz, Wi-Fi 2.4G/5.2G/5.8G, and GPS L1, L2, and L5 bands.

This Powerful drone jamming device effectively targets mainstream UAV communication and navigation signals, including:

• 860–930 MHz (50W)
• 1160–1280 MHz (10W)
• 1550–1620 MHz (10W)
• 2400–2483 MHz (50W)
• 5150–5250 MHz (30W)
• 5725–5850 MHz (50W)

Covering Wi-Fi, GPS, and RF bands, it ensures comprehensive disruption of consumer drones, FPV systems, and modified UAVs.

Portable drone jammer with Intelligent Power System

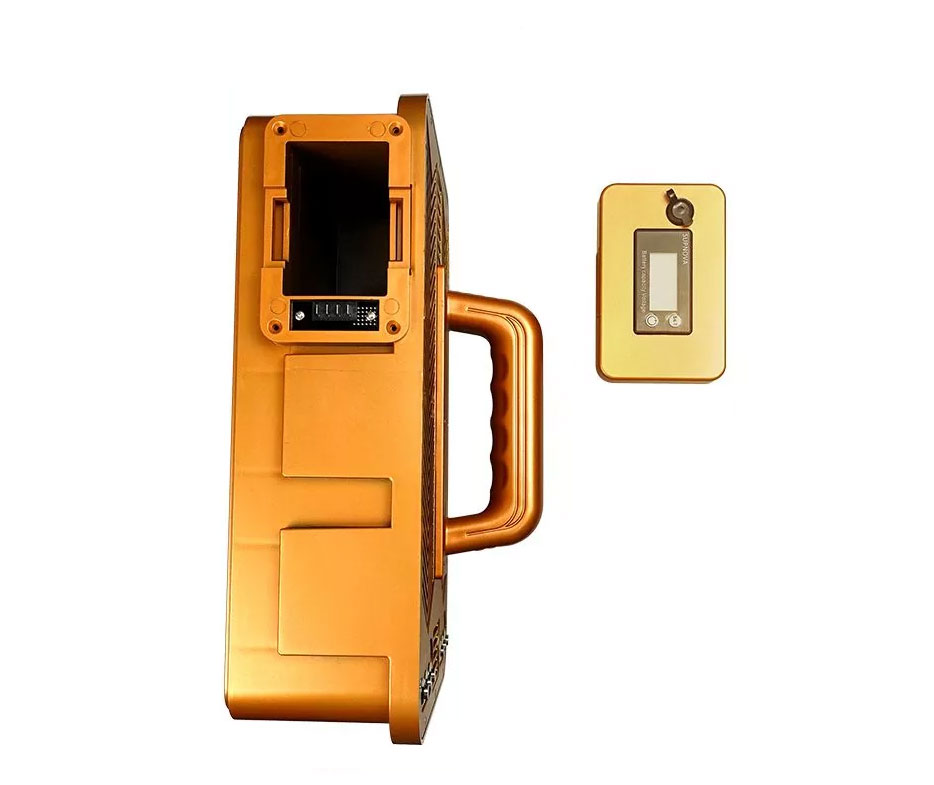

Featuring a compact suitcase-style structure, the device integrates a pull-out rechargeable battery and ergonomic handle. The real-time LCD battery display ensures clear monitoring during missions, while the hot-swappable battery system enables uninterrupted operation in the field.

Independent 200W multi-channel output interference device system

At its core, the Dr-H6 operates with a true independent power distribution system, delivering full-rated output across all six channels simultaneously. Unlike conventional devices, this high performance UAV jammer does not share power between bands, ensuring consistent suppression performance.

With a maximum power consumption of ≤480W, the system achieves an effective jamming range of 1500–3000 meters depending on environmental conditions.

Thermal Optimization for Continuous Operation

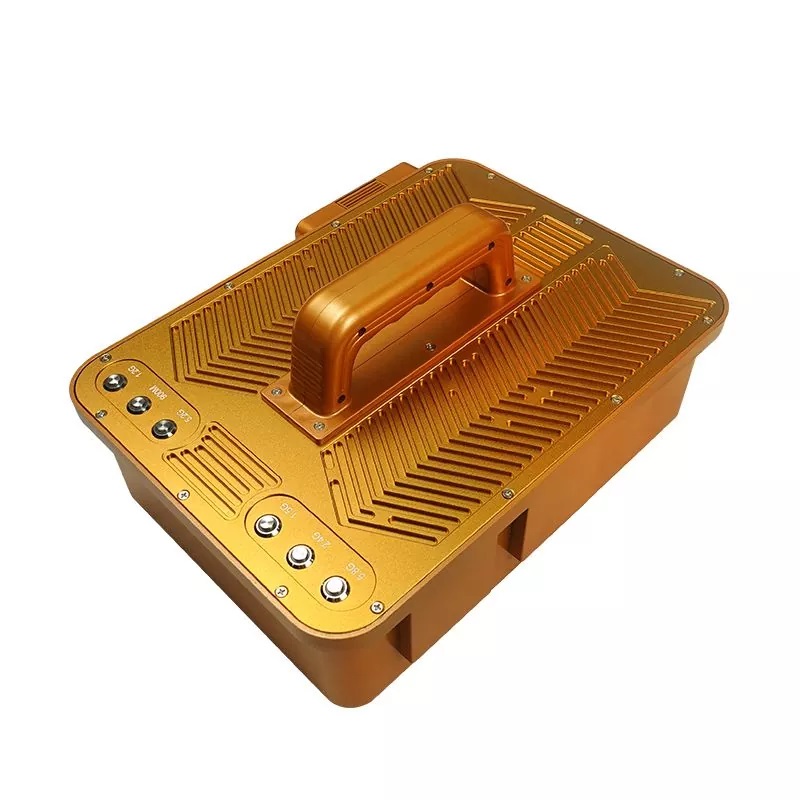

The internal airflow structure combined with deep-cut aluminum heat sinks allows sustained full-power usage. Overheating and performance throttling are minimized, even during long deployments.

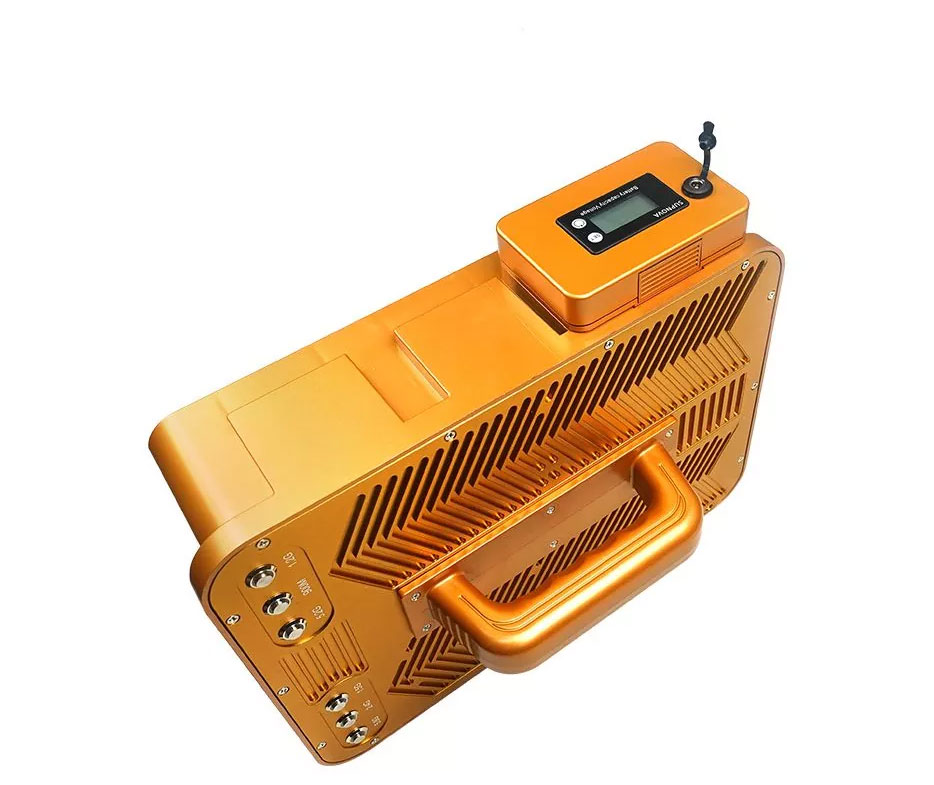

Each frequency band can be individually controlled via dedicated buttons. This allows operators to:

• Activate only required frequencies
• Reduce unnecessary interference
• Optimize battery efficiency

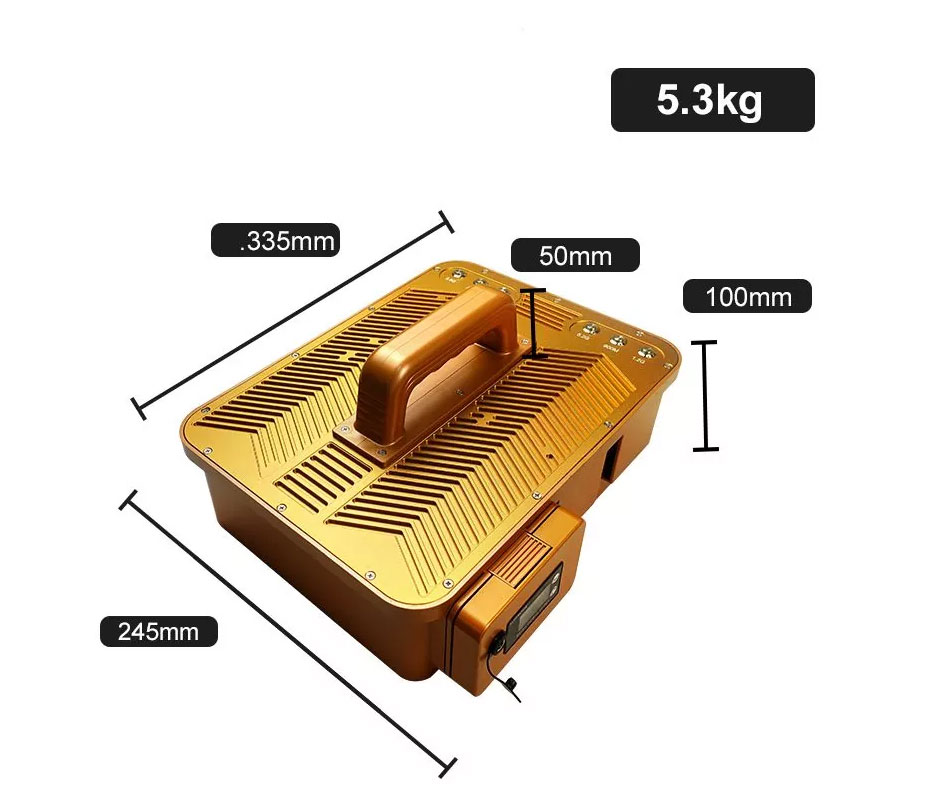

The reinforced metallic enclosure protects internal components from impact, vibration, and wear. Its compact size (370 × 270 × 105 mm) and manageable weight (5.3 kg) make it ideal for mobile deployment.

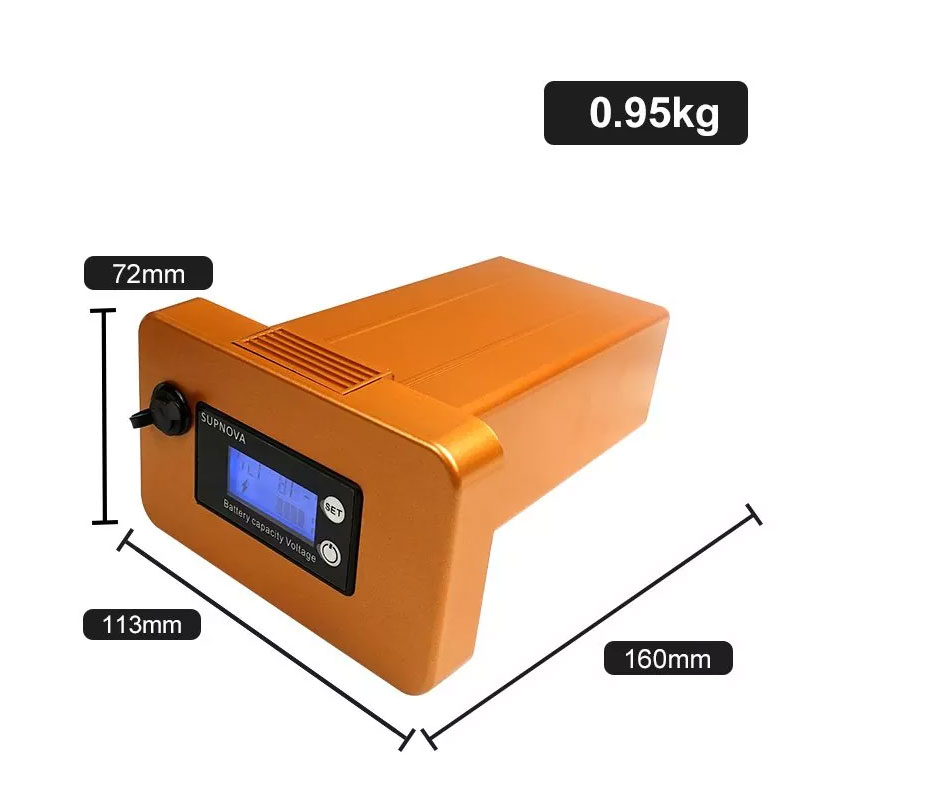

Powered by a 24V/7Ah lithium-ion battery, the device delivers approximately 60 minutes of continuous operation. The hot-swappable design ensures zero downtime during critical missions.

Technical Specifications

• Total Power Consumption: ＞200W
• Maximum Power Consumption: ≤480W
• Jamming Range: 1500–3000 meters
• Battery Type: 24V/7Ah rechargeable lithium-ion (replaceable)
• Working Duration: About 60 minutes
• Dimensions: 370 × 270 × 105 mm
• Net Weight: Approx. 5.3 kg
• Working Humidity: 30%–95%
