J-8P Handheld Multi-Band cellular phone jammer for GSM, WiFi & GPS Blocking

Not every signal jammer is built for the same environment. The J-8P (upgraded from J-6P) is designed for one specific situation: when signal density is high and simple single-path interference is no longer enough.

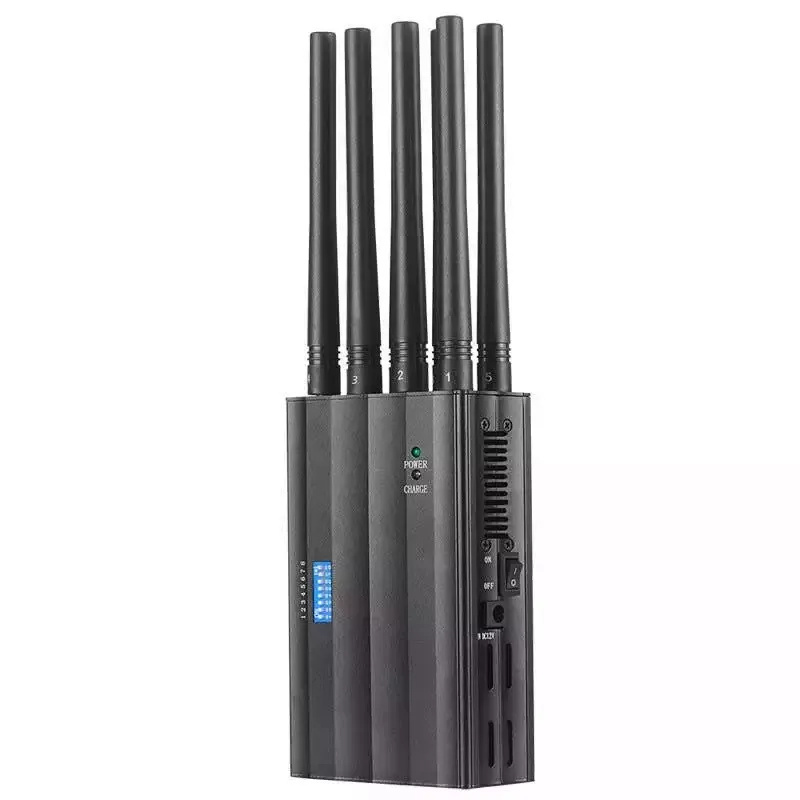

That’s the reason behind its 8-antenna structure. Instead of relying on a narrow directional output, it uses a distributed omni-directional layout to handle multiple bands (GSM/2G, 3G, 4G, WiFi 2.4GHz, GPS L1, and LoJack signals) at the same time.

Even with an 8-antenna multi-band design, portability is not compromised. The unit is integrated into a handheld aluminum alloy enclosure, built to withstand scratches, heat, and repeated on-the-go handling.

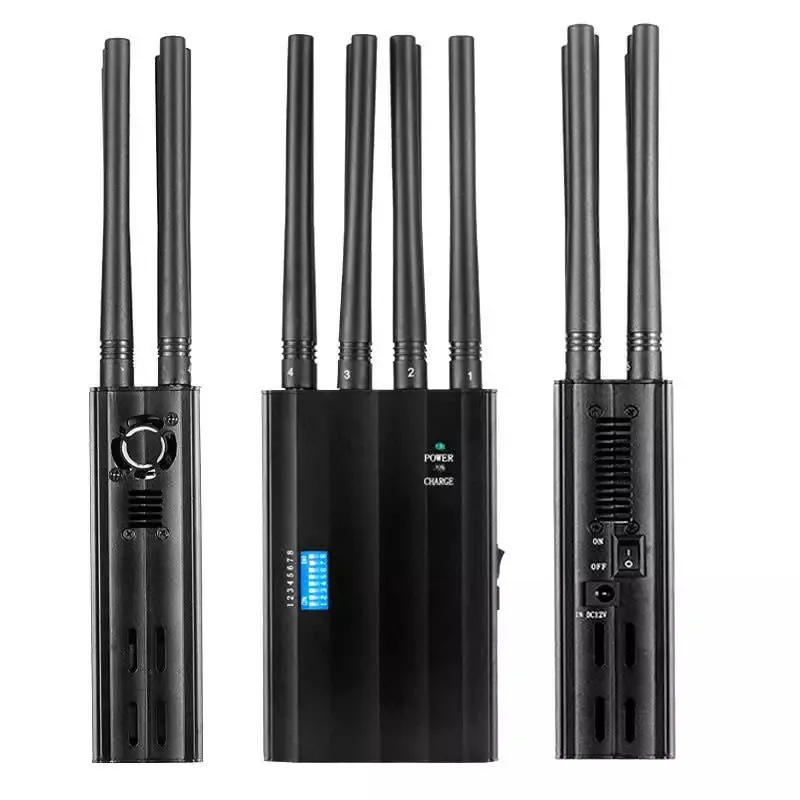

A row of elongated ventilation slots is integrated into the structure. These are not decorative elements. Instead, the air inlets/outlets form a vertical convection channel (chimney effect), where cold air enters from the bottom/side and hot air exits from the top. This airflow design helps stabilize internal temperature during continuous operation.

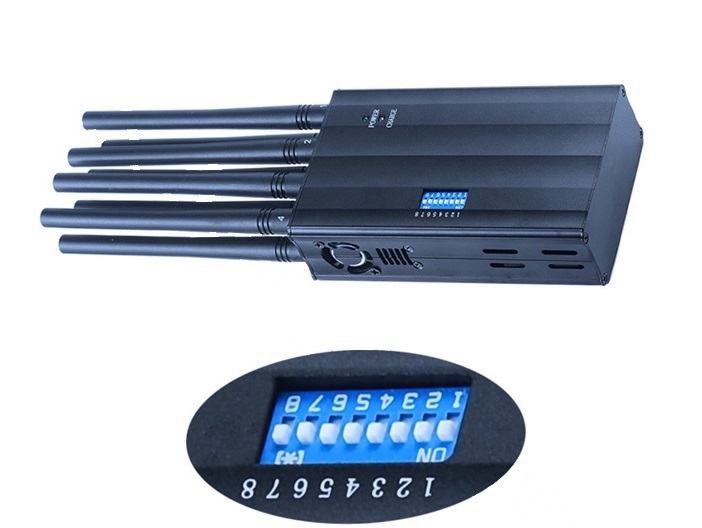

On the front panel, a white DIP switch array labeled 1–8 corresponds directly to each frequency antenna, allowing users to identify and manage individual channels in a structured way. And on the side, a main power switch is positioned for quick access.

Special attention: all antennas must be installed before powering on the device. Without proper antenna installation, internal RF components may be damaged due to load imbalance.

In addition, this equipment is not limited to a single operating mode. It can run on a built-in lithium battery (Battery life 1-2 hours) for mobile field use, switch to AC power for continuous indoor operation, or connect to a vehicle power source during transport-based deployment.

Portable mobile phone blocker's technical specifications:

Jamming radius: 5–30 meters (depending on environmental signal strength)
Power supply: DC 12V–24V / AC 110V–240V
Frequency bands: 8 independent and controllable bands
Antennas: 8 × omni-directional high-gain antennas
Startup time: ~3 seconds to active state
Recovery time: ~5 seconds after shutdown
Battery: built-in rechargeable lithium battery pack
Operating temperature: -40°C to 75°C
Net weight: 0.85 kg

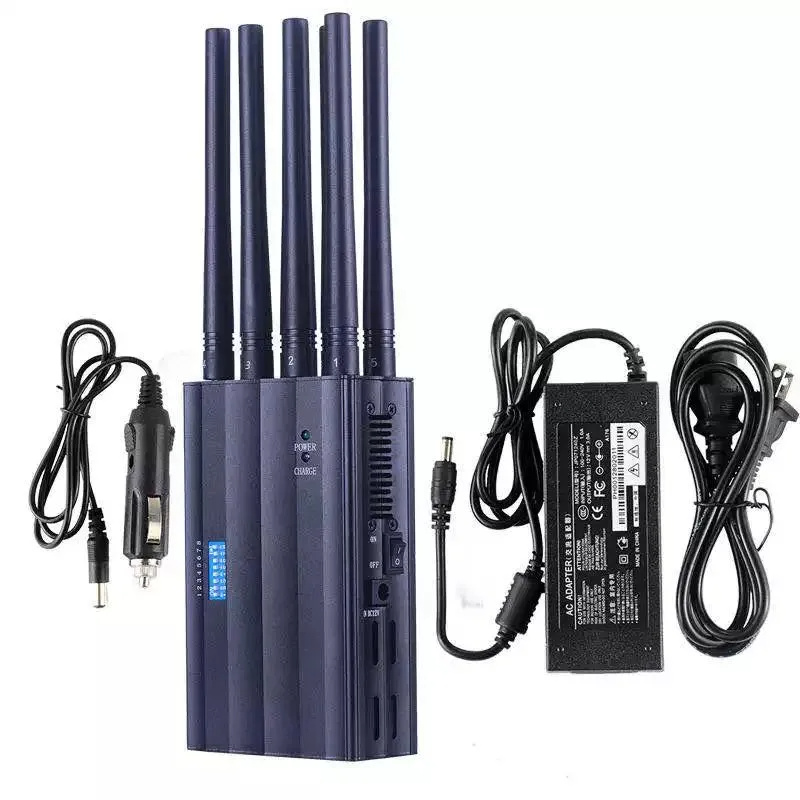

The J-8P cellular signal jammer package includes:

1 × cell phone jamming device main unit
8 × antennas
1 × car charger
1 × AC adapter
