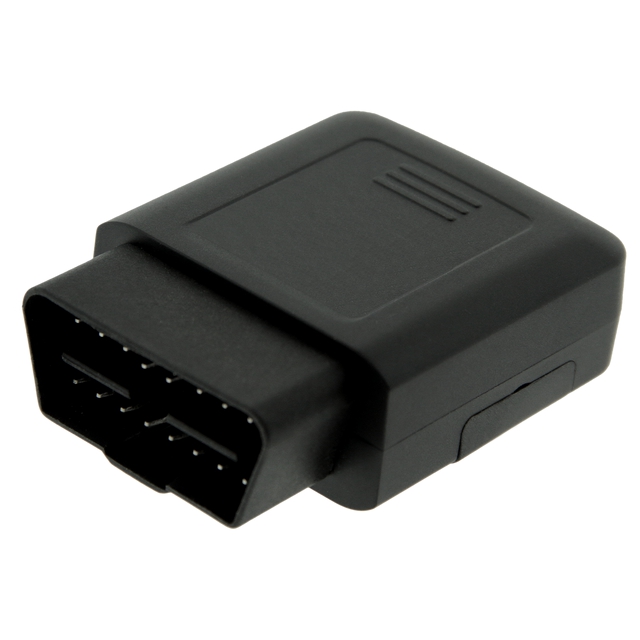

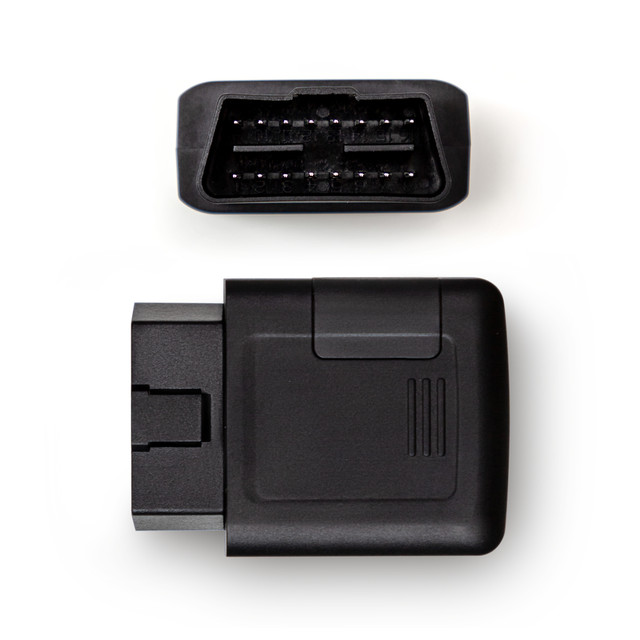

GT-OBD Mini Plug-and-Play OBD GPS Tracker for Vehicles

The GT-OBD Mini GPS Tracker offers a simple way to monitor a vehicle’s location without complicated installation. Designed for modern cars and trucks, the device connects directly to the vehicle’s OBD-II diagnostic port, allowing it to start tracking within seconds.

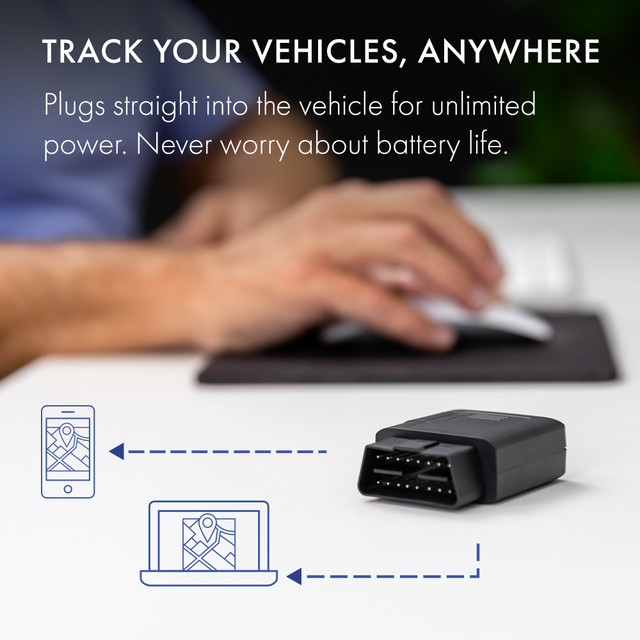

Because the GPS Tracker for Vehicles draws power directly from the vehicle, there is no need to worry about charging batteries or replacing power sources. Once connected, the tracking device continuously sends location data that can be accessed through a mobile app or web platform.

Its compact design also makes it easy to move between vehicles whenever necessary.

---

Designed for Convenient Everyday Use

Unlike traditional hard-wired trackers, the GT-OBD model focuses on simplicity and flexibility. The small form factor allows the device to remain discreet while still delivering accurate positioning and reliable connectivity.

With dedicated applications for iOS and Android, users can quickly check where their vehicle is located, review travel routes and monitor activity from virtually anywhere.

---

Key Benefits of GPS Locator for Vehicles

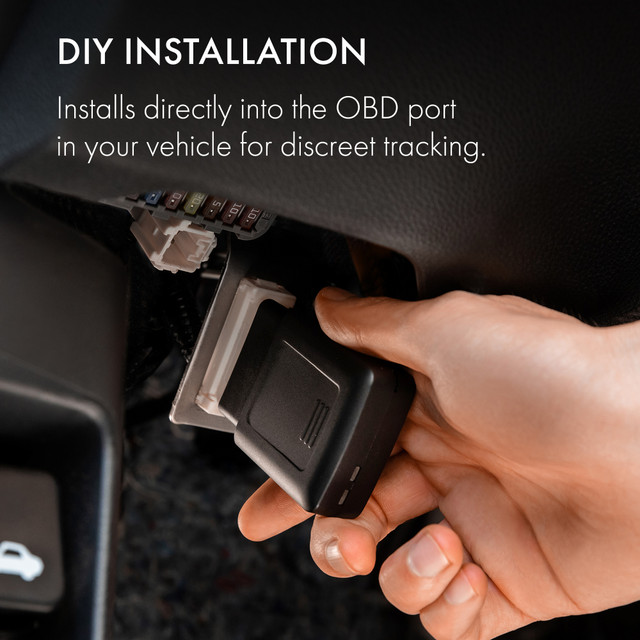

Plug-and-Play Installation
Simply connect the device to the vehicle’s OBD port to begin tracking immediately.

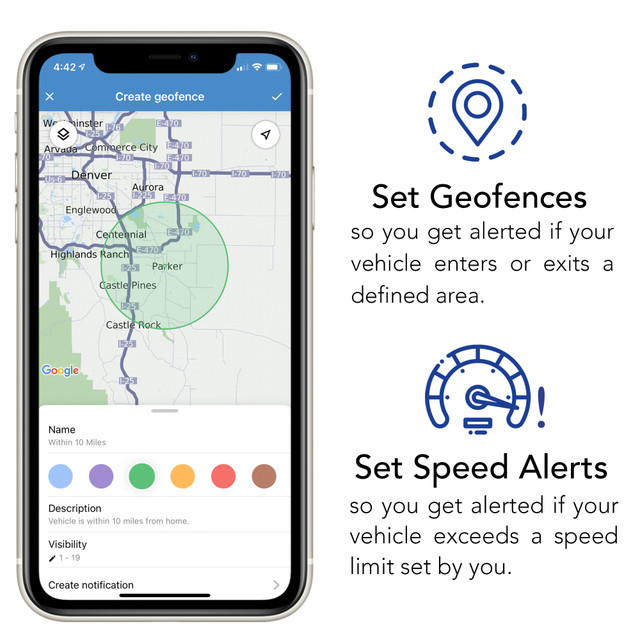

Real-Time Location Monitoring
View live vehicle positions through a smartphone or computer interface.

No Battery Charging Required
Powered directly by the vehicle, allowing continuous operation without maintenance.

Compact and Portable Design
Small enough to remain discreet and easy to transfer between vehicles.

Mobile App Control
Compatible with iOS and Android apps for convenient access to location data and travel history.

---

Technical Specifications

Positioning System: GPS
Receiver Channels: 72 channels
Position Accuracy: < 2.5 meters (autonomous)
Sensitivity: –165 dBm
Navigation Update Rate: 1 second

Time to First Fix (TTFF):
Hot start: < 1 second
Assisted start: < 1 second
Cold start: approx. 27 seconds

Dimensions: 2.4 × 1.8 × 1.1 inches
Weight: 34 g
Housing Material: ABS plastic
Protection Rating: IP50

Operating Voltage: 8 – 28 V DC
Power Consumption:
Working: 60 mA
Standby: 0.5 mA

Operating Temperature: –30 °C to 70 °C
Humidity: 5% – 95%

---

Package Contents

• 1 × GT-OBD Vehicle GPS Tracker
• 1 × Quick Start Guide

---

Typical Use Cases

• Monitoring personal vehicles
• Managing company cars or light fleets
• Tracking delivery vehicles
• Keeping an extra layer of vehicle security

The device provides a practical tracking solution for both individual users and small business fleets.
